Google explores these techniques as well. They're critical to improving accuracy in urban areas where you don't have line of sight to satellites (this is why your GNSS (AKA GPS) location is terrible whenever you're in a city). Here's [0] a cool gif visualizing the principle of GNSS ray tracing taken from one of Google's blog posts [1]. Here's an article with more information about Google's techniques [2].
Almost like they wrote a blog article about it so others could learn from it.
If it were available to all android apps I don't know why Uber would go out of their way to reimplement it. So it must not be available to all apps and exclusive to Google maps and Waze
Cool, so it looks like they take the “raw” GPS location (after the GPS module does processing to spit out a lat/long) and applies statistical methods with a model of the actual 3D geometry. Seems like a smart way to improve the accuracy from “userspace”.
This reminds me of the Comma.ai project, Laika [0]. Since they have access to the raw GPS module data (Ie the actual timings of each received satellite transmitting), they can do things such as correcting for troposphere/ionosphere delays by looking up the relevant astro data as recorded by NASA and others.
You may be interested in knowing that Android has exposed raw GNSS measurements through public APIs [0,1] so anybody can build their own raw processing engines using techniques like the ones described in the article
Is anyone actually doing that? I see a build of RTKLIB but it's not actually using the Android GNSS API, it's just using your Android phone as a processor to handle data coming from an external Ublox receiver. Aww.
The android API exposes basically the same data that would come down the serial link from a 90's era GPS receiver plugged into a PC.
That's the position estimate, information about satellite orbits, signal strengths and pseudoranges.
The data doesn't include the raw baseband information necessary to, for example, do carrier phase locking or to do a fully software implementation of GPS decoding.
This should probably be called "use-specific gps optimization". These are ideas that improve accuracy for specific use cases (cars on roads) but may introduce errors for other users (people in buildings). We see this with googles driver-focused navigation whereby it always pulls you to a road, even though you may be well off the road.
Ive seen this come up in courts. A gps record will say that a person is traveling on highway X instead of parrallel street Y based on speed or direction of travel. When someone is doing something unussual (high speed in wrong direction) mapping software optimizations may go haywire. This is fine, so long as we all understand the difference between the underlying GPS track and a software-optimized track that incorporates logic beyond simple gps position.
Take the unussual situation of a large traffic accident. We dont want the EMT position to be reported as being on the sidewalk just because they are walking. Or after an earthquake. We dont want trapped survivor positions to change based on expected interfearance from tall buildings, buildings which might not be there anymore.
I didn't even notice the date, thanks. The article presents it as if it was invented at Uber, but there's an identical family of techniques also called "shadow-matching" that have been known in the literature for like a decade. Many companies improve the raw GNSS fix with things like map-matching nowadays, but it was much less common even 5 years ago so this would have been fairly innovative back then.
Uber acquired a startup around 2015. It was that startup that was using shadow-matching and particle filtering to address the problems mentioned in the blog. The startup was founded by a bunch of UCLA PhDs who studied the problems, so I guess they had something innovative.
If you're curious which phones support L5, check out the table linked on this page (SCROLL DOWN to "GPSTest Database" for the up-to-date table, since the first one is out of date): https://barbeau.medium.com/9be4bbb83a7b
Is it really so few? Snapdragon got support for dual frequency in Snapdragon 855 released in 2018. Use the GPSTest app to see if your phone supports it.
If you want to have this feature you have to start looking at the high end models which are of course expensive.
Last time I've checked only Chinese brands like Huawei, Xiaomi or Realme seem to offer it at a more affordable price range.
According to this list[0] some Samsung Galaxy S20 does support it, as does the Pixel 5 (and 4 and 6). Google also lists both models as having L5 support[1].
Of course the best way of knowing if your phone supports it is to test it yourself.

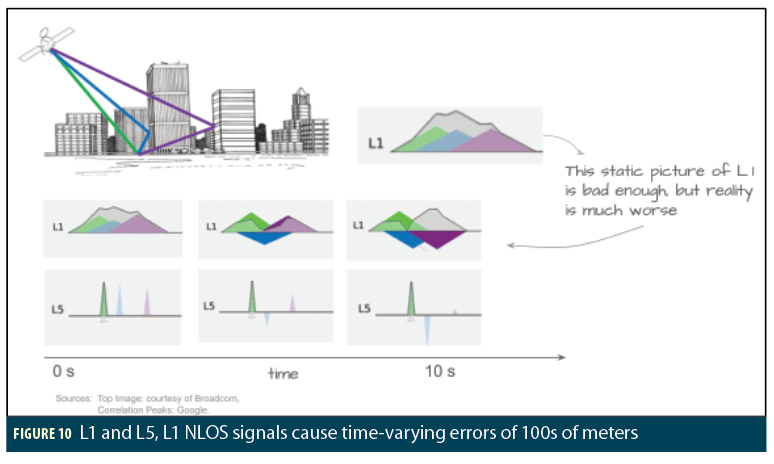

It has a shorter wavelength so the correlation peaks are more narrow and hence more easily distinguishable. See this illustration [0] taken from this article [1]
To oversimplify: It's on a different frequency and so will be subject to different forms of error. You can average the results of L1 and L5 to get a more accurate position.
That's not how it works at all. L5 at 1176 MHz has a different ionospheric delay than L1 at 1575 MHz. Since the timing data is identical, you can calculate and remove the ionospheric delay if you can receive both signals at once.
Correlation peak width is an SNR property (and to a lesser extent dependent on receiver LO phase noise), not something that really corresponds to the RF band in use. Whichever signal is stronger (taking antenna gain into account) is the one that will yield better-quality baseband data.
L5 has a 10 times higher modulation ("chipping") rate than L1/2 which does lead to a narrower correlation peak width. However, it doesn't solve the multipath problem near tall buildings.
What happened to the next gen gps technology, I thought it was supposed to be out by now. Centimeter level precision, much better urban (blocked by buildings) accuracy, etc?
It's not a single technology but multiple gradual improvements. E.g. since yesterday even iPhones have dual-frequency L5 GPS which improves accuracy in some situations: https://news.ycombinator.com/item?id=32790478
What others said + it depends on your location, different GPS satellites serve different continents (usually), so GPS might work better/worse in Europe compared to South Africa (as an example).
Wait, so with the new iphone I will be able to see my location on a map with this accuracy? So basically if a map resolves down to one foot I will have the location pinpointed to a foot from where I am? Currently it’s like 20 feet accuracy.
Urban canyons will be properly solved by using small phased array antennas for GPS reception. Then one can detect which signals are coming from the wrong direction and therefore must be reflections.
Phased array antennas also allow GPS-based compasses which should be far better than magnetic compasses which can be rather inaccurate.
Such phased array antennas are already coming into use for more throughput for 5G and WiFi use, and antenna sharing is feasible although not currently done commonly.
Most of the Uber cabs work in urban settings where there are bunch of Wi-Fi enabled. Could they use the Wi-Fi to pinpoint the location instead of relying on GPS? Probably they can setup some relay nodes on their own for coverage.
No mention of iOS in the video or article. Anyone knows if Uber does something similar on iOS, and if Apple has done any similar efforts in system-level APIs like Google has?
The article says "internal version of the Uber rider app", which makes me think it's some sort of internal/beta/debug build of the app that everyone else gets. In that case it makes sense that many of the features would stay the same, including stuff like ads.
The “internal” app is essentially the same as the regular app. The difference is that it may receive beta features, there’s an easy “report bug” button and a side panel with diagnostics info, feature flags and other debugging tools.
Was just in an Uber in Miami and the driver was telling me how the service stopped working for 3 hours a week ago. It seemed to be local to the area around Miami only, though. Anyone know if this is true?
[0] https://1.bp.blogspot.com/-FskvGHx-IOc/X8qtZi1GUNI/AAAAAAAAP...
[1] https://android-developers.googleblog.com/2020/12/improving-...
[2] https://insidegnss.com/end-game-for-urban-gnss-googles-use-o...
